Digital recording network camera
Protecting Critical Government
Infrastructure
Military and Homeland Surveillance
When you're DEPLOYED, OkSolar Goes With You! IP
video, ip video solar powered, IP security,
networked video, digital video, intruder detection,
proximity detection, access control, homeland
security, physical security, school security
IP Video... Anywhere Utilizing the
best current technology in wireless radios, digital
cameras, and solar power,
OkSolar-GenerlaCommunications have developed a
family of cost effective solutions for remote IP
video security and surveillance.
Applications:
Monitoring Construction Sites
Homeland Security
Public Safety
Traffic Monitoring
Remote Surveillance
Education
Military Monitoring
Golf Course Monitoring
Pipeline Monitoring water treatments plants
Cost effective solutions for remote IP video
security and surveillance. These systems transcend
traditional barriers for operating remote-site video
by integrating new secure 802.11 radio technology
with feature-rich IP video cameras, powered
completely by solar energy. This enables any
authorized user with an Internet connected device to
view live video located, literally, ANYWHERE.
Ok-IP Video
Anywhere
Protecting
Critical Government Infrastructure Military and Homeland
Surveillance
OkSolar’s
OkIP Video Anywhere
technology empowers Government agencies, Industrial facilities,
developers, contractors, and other professionals to efficiently and
effectively manage sites across the country and around the world.
OkIP Video Anywhere allows businesses to monitor an unlimited
number of locations over the internet using non-intrusive, energy
efficient, IP camera systems.
Keep an eye on your
critical facilities at all times.
With
OkSolar’s OkIP Video Anywhere, you can monitor sites several
thousand miles away as if they were across the street. Our system
facilitates remote site surveillance through energy-independent
operation and allows video to be transmitted over IP without any
physical lines being installed. Companies with remote or hard to
access assets, such as oil and gas pipelines, bridges or rural
properties, have not had an effective, economical solution for
protecting those assets. Some of the features like
automated archiving allow you not only to
track construction progress in real time but also to retrieve past
images which can be used to resolve issues quickly.
|
|
Applications: Monitoring
-
Construction Sites
-
Homeland Security
-
Hospitals
-
Public Safety
-
Traffic Monitoring
-
Remote Surveillance
-
Education
-
Military Monitoring
-
Golf Course Monitoring
-
Pipeline Monitoring
-
Water treatments plants
|
|
 |
Institutions of all kinds - from shopping
centers to transportation systems to military bases - are being challenged
to install video surveillance in areas that are too remote, too costly or
physically impossible to reach with traditional cabling.
General Communications wireless security solution simply leaps over
these barriers, allowing a virtually unlimited number of video
surveillance cameras to be deployed quickly, easily and cost-effectively
in a new or expanded security system. High-resolution, real-time video
from each security camera is transmitted directly to a
General Communications base station in your on-site security office or
regional security center. From here, General Communications wireless network
can remotely control the cameras.
General Communications outdoor broadband wireless solutions are available
in a wide range of capacities and ranges, from economical solutions for
campus and mall security to mission-critical regional Homeland Security
systems spanning thousands of square miles. General Communications Wi-Fi solutions are
ideal for providing surveillance coverage within buildings as well as
remotely monitoring from wherever you are.
Advantages: Eliminates the massive costs and delays of trenching for
fiber Quickly deployed and reconfigured - operational within hours Deploys
virtually anywhere -- rugged terrain, bodies of water, remote areas Carrier class 99.999% reliability ensures non-stop security.
Enables real-time transmission from and control of surveillance cameras Wi-Fi network allows remote monitoring (via PDAs, desktops, etc.) and
increases ROI |
Ok-IP Video
Anywhere
Three basic system configurations:
- Stand Alone unit (Off-Grid) - Item#80008
- IP Camera system.
- IP Radio transceiver.
- Solar power system.
- Battery Backup with up to 5 days run time.
- On-Grid / Backup - Item#80009
- IP Camera system.
- IP Radio Transceiver.
- Back-up power system.
- Battery Backup with up to 5 days run time.
- On-Grid - Item#80010
- IP Camera System.
- IP Radio transceiver.
Examples of minimum system configuration
- Stand Alone Camera System (Remote area - Off-Grid)
- Item# 80008 (one per camera system)
- Item# 80011 (up to 96 Camera systems)
- On-Grid
- Item# 80009 (one per camera system)
- Item# 80011 (up to 99 cameras system)
Ok-IP Video Anywhere can come without a power supply at
all, or with just an uninterruptible power supply (UPS) for backup when
the power goes out.
|
|

Features Include:
-
IP Addressable Cameras
-
IP Addressable Radios
-
Lightning Protection
-
Up to 100 units per each Base Station (sold
separately)
-
E-mail/FTP notification on event occurrence
-
Wireless remote can be up to 16 miles from Base
Station (sold separately)
-
Up to 8 different motion detection zones per camera
-
Cost Effective
-
Power Options
Wireless
point to multipoint solutions enabling reliable 11 Mbps connectivity for
last mile access, campus networking, and security and surveillance. Base
Station Units connect up to 96 high secure Remote Subscriber Units,
while the new Wireless Outdoor Router Protocol (WORP) ensures superior
performance and scalability.
Cost
effective solutions for remote IP video security and surveillance. These
systems transcend traditional barriers for operating remote-site video
by integrating new secure 802.11 radio technology with feature-rich IP
video cameras, powered completely by solar energy. This enables any
authorized user with an Internet connected device to view live video
located, literally, ANYWHERE.

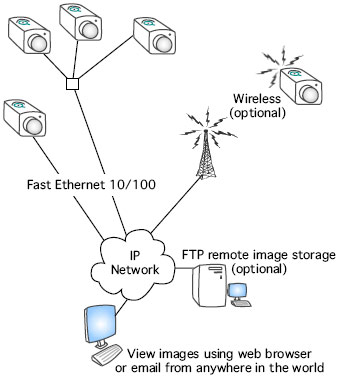

Ethernet cables easily connect to network cameras to GcMP.11
subscriber units. The subscriber units transfer high-resolution video
back to a centralized GcMP.11 base station in real time. With the base
station connected to your network, video can be viewed from within your
network.
With the appropriate security access, video can be viewed from any PC
connected to the internet utilizing standard browsers. Since The
Ok-IP Video AnyWhere! is
powered by the sun, no AC power is necessary.
|
Basic system operation:
Remote subscriber units transfer high resolution video wireless to a
centralized base station in real time.
The base station is connected to your network; video coming from
remote subscribers units (up to 96 per base station) becomes
available to your network, using high security access, each remote
subscriber (camera) can be viewed and managed from anywhere in the
world, using a regular internet connection, with standard web
browser.
|
Camera Features:
Camera Features: Offers
exceptional multi-mega pixel resolution with LIGHT GRABBER low light
technology. Crisp, clear pictures from dimly lit scenes are just one
of the many advantages. Digital PTZ with 25x the resolution of CCTV
systems lets you replace multiple cameras or a mechanical PTZ
camera.
The Camera includes everything you need to build a smart,
high-resolution, high-sensitivity IP network video system - that�s
affordable. Available with a PC card slot for Wi-Fi or on-camera
storage, the Series� industrial design, and very low power
consumption, make it ideal for the most demanding applications.
• 1.3 or 2.0 mega pixel resolution
• LIGHT GRABBER low light technology
• Embedded recording software
• Quad view multi-camera viewing
• Digital PTZ with no moving parts
• Smart video algorithms
• PC card slot for Wi-Fi/on-camera storage
• Integrated power over Ethernet
Up to 8 different motion
detection zones per camera that will trigger 8 different events with
8 different actions.
Lenses
The lenses are proven to work well with smart network cameras.
We also offer a handy lens calculator - enter your camera choice, your level of
detail (from examples) and the subject distance, and our calculator will provide
specific recommendations for lenses. For our lens calculator contact our
Sales department
|
Radio Communications Features:
is a robust and affordable 54 Mbps wireless
point-to-multipoint connectivity solution ideal for metropolitan area
networking (MAN) and data backhaul. Easily providing an outdoor
extension to your LAN, the system enables the instant creation of
wireless WANs for a number of applications such as security and
surveillance, enterprise backbone networks and broadband wireless access
-
802.11 Compliant
-
11 Mbps Data Rate
-
FCC Compliant
-
Remote Management via IP, SNMP, Telnet, HTTP
-
Up to 100 Subscriber Units (SU’s) per Base Station
-
802.3af Power over Ethernet (PoE) (except for
Residential Subscriber Units-RSU)
-
Bandwidth Throttling to allow for different service
levels for clients
-
New Wireless Outdoor Router Protocol (WORP) for
superior performance and scalability
-
128 bit encryption and Access Control Filtering
protects network from unauthorized access.
Optional Towers 24’, 32, 40’, 48, 56, 64’, 72’, 80, 88’, 96’
Systems do not include antennas or coax cable.
Advantages: Eliminates the massive costs and delays of trenching for
fiber Quickly deployed and reconfigured - operational within hours Deploys
virtually anywhere -- rugged terrain, bodies of water, remote areas Carrier class 99.999% reliability ensures non-stop security.
Enables real-time transmission from and control of surveillance cameras Wi-Fi network allows remote monitoring (via PDAs, desktops, etc.) and
increases ROI
|
Solar System Features:
•
Photovoltaic solar panels Regular or Flexible
• Sealed maintenance-free battery specifically designed for deep cycle
PV applications.
• Electronic charge controller.
• Top pole mounting. Adjustable 0 to 90 degrees. Stainless steel
fasteners designed to withstand high wind velocities.
• Cast aluminum housing pad enclosure with a lockable door.
Expand your system: We have included components that allow for
easy plug and play expansion units.
low sunlight conditions
Specifications:
Backup Storage:
The capacity of storage energy for use during night time or raining
days.
Max DC out put
power: The max watts hour the system is able to provide Daily energy
Systems come with.
Test
Conditions: of 1.5 air mass spectrum; 20 degrees C ambient air
temp.; 1 sun, (1000 watts per square meter at POA irradiance); 1
meter per second wind speed at 10 meters above grade), 5 Hours per
Day of sun.
|
Software Features:
No PC
software - the camera handles recording and playback.
- Use
inexpensive disk drives to record surveillance video
- Supports recording on-camera, to file server, or NAS box*
- Digital Pan Tilt Zoom in recorded video - record everything all the
time
- Event/normal recording - set different resolution and frame rate for
each
- Multi-mega pixel images recorded in full resolution - capture
- We do offer optional system software contact our sales
dep.
|
Everything you need for a simple,
affordable, intuitive IP video system. |
|
 |
|
Picture Gallery:
Monitor construction Jobs Anywhere!
|
Cameras Network Stable
Products: Cameras
Multi-Megapixel Resolution Advantages
Our IP cameras are not just network ready, they are network stable. Our core IP
technology has been installed in millions of network devices worldwide,
providing you with a secure, stable device that will outperform the competition
every time.
No other IP camera can match our stability. Where competitive cameras have to be
rebooted every few days, cameras run and run, without the need for
intervention. When an incident occurs you want your cameras recording, not
locked up or in a reboot cycle.
Market Ready IP Technology - Millions Installed
Stable - Runs and Runs Without Rebooting
Mature - Tested and Approved by the Most Demanding Network Managers
|
Ok-IP Connect Anywhere!
|
Adobe
PDF Files Many OkSolar documents & catalog pages
 require
the latest version of Adobe Acrobat Reader that may
be downloaded free at: You can get this application
for Free at
https://www.oksolar.com/pdf
|
|
